Image 1 3 Way AMT Studio Monitor, Single, White | Fluid Professional

Name: Image 1 3 Way AMT Studio Monitor, Single, White | Fluid Professional
Brand: Fluid Professional
SKU: FP-IMAGE1W
Price: 1399.00 USD
Availability: InStock

Active 3-Way Studio Reference Monitor WHITE

Quantity: Single Powered Monitor
LF Driver: Dual 6.5″ active
MF Driver: 4"
HF Driver: AMT
Wattage: 475 Watts

$1,399

Flexible payment options Pay over time with Klarna or Affirm. Amazon Pay also available at checkout.

Only 2 left in stock

Find a dealer

US DIRECT PURCHASING

Buying Direct in the US

Online checkout is available to US end users only.

Free US shipping included
2-year warranty
Secure checkout
Klarna and Affirm available at checkout
Amazon Pay accepted at checkout
Ships from Fort Wayne, Indiana

Outside the US? Purchase through an authorized Fluid Audio dealer.

Find a dealer

Compact 3-Way Reference Monitoring for Serious Mix Decisions

Image 1 is built for engineers, producers, mastering rooms, and immersive systems that need accurate imaging, controlled low end, dedicated midrange precision, and reliable translation from a compact reference monitor.

A true 3-way architecture combines dual-opposed 6.5-inch woofers, a dedicated 4-inch aluminum midrange, AMT high-frequency driver, onboard DSP, SoundID Reference profile support, and a sealed low-frequency system in one compact professional monitor.

Dedicated midrange Improves vocal placement, instrument separation, snare definition, and mix balance.

AMT high-frequency detail Fast transient response and extended detail without relying on aggressive voicing.

Dual-opposed low end Two active 6.5-inch woofers provide controlled bass from a compact sealed cabinet.

DSP and calibration ready Store SoundID Reference calibration profiles directly in the monitor system.

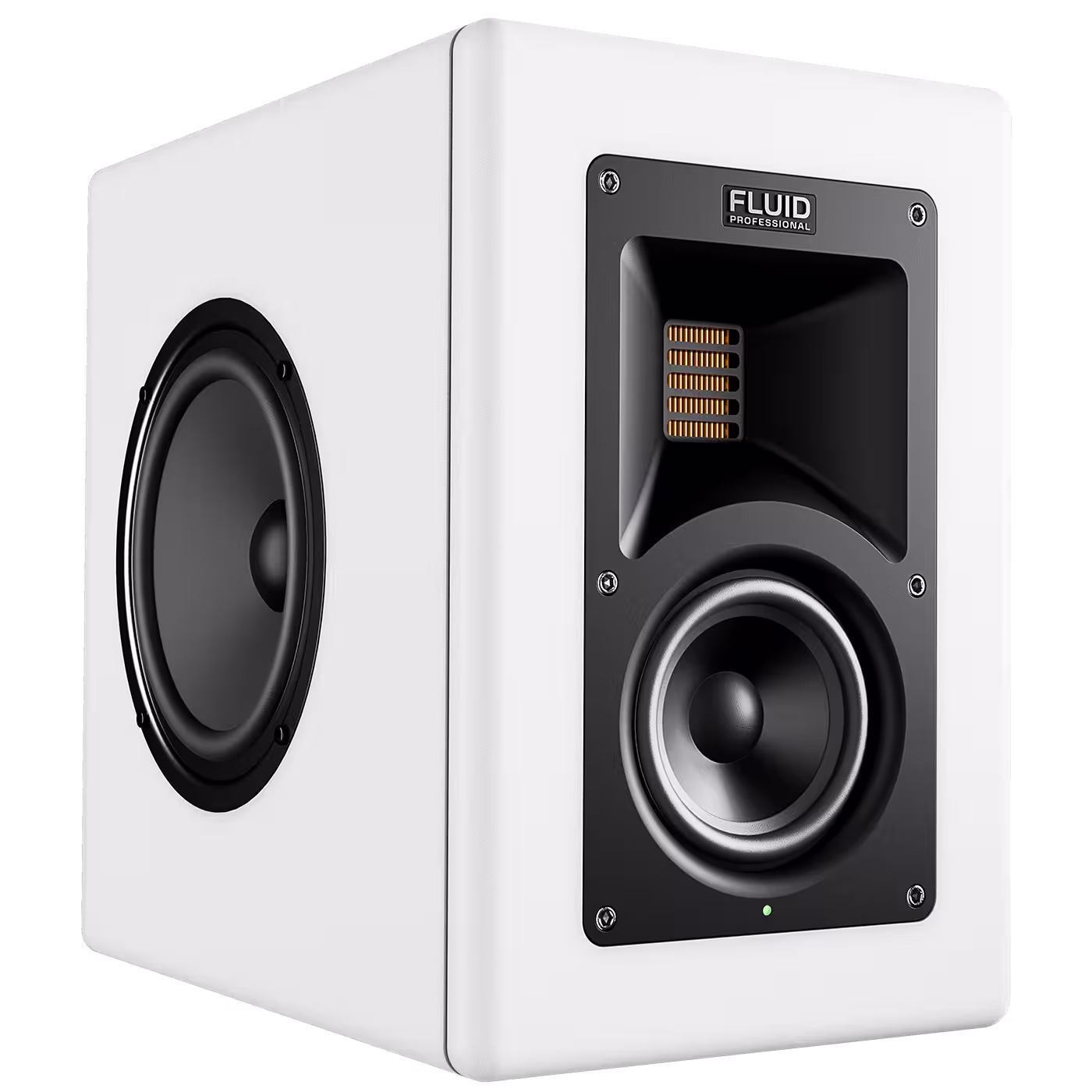

Fluid Professional Image 1 White three-way reference studio monitor

Fluid Professional Image 1 White rear panel showing analog XLR, AES digital connections, network control, and DSP controls

DSP Control and Calibration

Modern Monitoring Workflow with Integrated DSP

Image 1 combines onboard DSP processing, analog balanced XLR input, professional AES digital connectivity, rear-panel acoustic controls, and SoundID Reference integration in a compact reference-monitoring platform.

Calibration profiles are uploaded through the monitor's RJ45 network connection using DCT software, allowing room-correction profiles to live directly inside the monitor system instead of depending on a permanently active software plug-in.

SoundID Reference Ready

Store up to four calibration profiles directly in the monitor and switch between calibrated listening setups.

RJ45 Network Control

Network connectivity provides the DCT communication path for monitor setup and uploading calibration profiles.

AES Input + Thru

Connect to professional digital monitoring systems using AES input and continue the digital signal chain through AES thru.

CubeMix + Rear EQ

Use CubeMix through DCT for translation checks, while rear-panel EQ controls provide fast adjustment for room and boundary placement.

3-Way Driver Architecture

Dedicated Midrange Precision and Controlled Low-Frequency Performance

Image 1 separates bass, midrange, and high-frequency reproduction across dedicated drivers so each part of the spectrum can operate over a more focused range.

4-Inch Aluminum Midrange

The dedicated midrange handles the critical vocal and instrument region without forcing the woofers or tweeter to cover an unnecessarily wide bandwidth.

AMT High-Frequency Driver

The Air Motion Transformer provides fast transient response, high-frequency detail, and extended reproduction for critical mix decisions.

Dual-Opposed 6.5-Inch Woofers

Two active low-frequency drivers provide useful extension while the opposed geometry helps reduce cabinet reaction forces.

Vi-Bracer + Sealed Cabinet

The mechanically coupled woofer system and sealed alignment help control enclosure movement, decay behavior, and low-frequency transient response.

Fluid Professional Image 1 White cabinet, driver system, and rear I/O

Measured Response

Reference Monitoring You Can See as Well as Hear

Image 1 is designed for controlled response through the most critical mixing range, with a compact sealed system that prioritizes useful translation and predictable low-frequency behavior.

40 Hz – 20 kHz Published ±4.6 dB response

80 Hz – 20 kHz Published ±2.0 dB response

190 Hz Bass-to-mid crossover

3.0 kHz Mid-to-AMT crossover

Fluid Professional Image 1 frequency response curve — Published Image 1 frequency response.

Immersive Monitoring

Built for Dolby Atmos, Compact Rooms, and Scalable Reference Systems

Image 1 is designed for modern immersive workflows including Dolby Atmos music mixing, post-production, multi-channel monitoring, and compact stereo systems where translation, consistency, and placement flexibility matter.

Learn more about Fluid Professional reference monitoring Shop the complete Fluid Professional Image Series

Compact 3-Way Monitoring

Image 1 is the better fit when room size, listening distance, or speaker count demands a smaller enclosure without giving up the Image Series three-way monitoring philosophy.

Image 2 for Larger Rooms

For longer listening distances or higher output requirements, Image 2 provides more output, larger drivers, and deeper low-frequency authority.

212S Low-Frequency Extension

Add the Image 212S when the system needs dedicated LFE reproduction, deeper extension, or additional low-frequency headroom.

Immersive Workflow Guidance

Read the Dolby Atmos music mixing guide for speaker layouts, monitoring choices, and system-planning guidance.

Independent Reviews

Hear What Producers and Reviewers Say About the Image Series

Independent perspectives on the Image Series, its translation, frequency balance, imaging, and real-world studio performance.

At a Glance

The Image 1 Reference Monitoring Platform

475 W RMS Combined LF, MF, and HF amplifier power

108 dB Maximum SPL

3-Way Dual 6.5-inch LF + 4-inch MF + AMT HF

4 Profiles SoundID Reference calibration storage

Technical Specifications

Compact 3-Way Reference Monitor Specifications

Image 1 combines compact three-way monitoring, onboard DSP, dual-opposed low-frequency architecture, SoundID Reference profile storage, and professional analog and AES connectivity.

Description

3-way active reference monitor with room-correction profile upload

Maximum SPL

108 dB

Sensitivity

87 dB @ 1 meter with -15 dBV input signal
Level control set to 0 dB

Frequency Response

±4.6 dB, 40 Hz – 20 kHz
±2.0 dB, 80 Hz – 20 kHz

Bass Response

-3 dB @ 45 Hz
Q = 0.707
24 dB/octave slope

Crossover Frequencies

Bass / Mid: 190 Hz
Mid / Treble: 3000 Hz
Controlled by onboard DSP

Cabinet

14.5 liters total internal volume
Sealed woofer and midrange enclosures

Low-Frequency Drivers

Dual 6.5-inch paper-cone woofers
±5.0 mm linear excursion

Midrange Driver

4-inch aluminum cone
Low-distortion motor with shorting ring

High-Frequency Driver

AMT Air Motion Transformer
66 × 66 × 27 mm

Amplifier Power

Low frequency: 150 W × 2 RMS
Mid frequency: 100 W RMS
High frequency: 75 W RMS
Total: 475 W RMS per monitor

Controls

Input-level stepped attenuator

Input Impedance

Balanced XLR: 20 kΩ

Signal Processing

24-bit / 192 kHz signal processing
Onboard DSP
Room-correction profile upload
SoundID Reference profile support
Up to four stored calibration profiles
CubeMix mode via DCT software

Audio Connections

Analog balanced XLR input
AES digital input
AES digital thru

Network / Control

RJ45 network connection for DCT communication and profile upload

Rear Panel Acoustic Controls

Rear-panel EQ adjustments for room and boundary placement

AC Power Input

100–120 VAC or 220–240 VAC
Voltage configuration set at factory

Power Consumption

Idle: 3 W
Maximum: 650 W

Weight

Net: 21.8 lbs each / 9.9 kg
Shipping: 28.2 lbs each / 12.8 kg

Shipping Dimensions

17.24 × 13.19 × 17.83 inches
438 × 335 × 453 mm

Product Dimensions

8.11 × 12.13 × 12.13 inches
206 × 308 × 308 mm
