Fluid Professional Image 212S – Dual 12-Inch Reference Studio Subwoofer

Name: Fluid Professional Image 212S - Dual 12-Inch Reference Studio Subwoofer
Brand: Fluid Professional
SKU: FP-IMAGE212S
Price: 2099.00 USD
Availability: InStock

Active sealed subwoofer with dual opposed 12 inch drivers

Quantity: Single Powered Subwoofer
Dual 12 inch active drivers (dual opposed)
Sealed enclosure
1000 W RMS (2000 W peak)
Stereo, Dolby Atmos, Sony 360, and immersive audio applications

$2,099

Flexible payment options Pay over time with Klarna, Affirm or Cash App Afterpay. Amazon Pay also available at checkout.

In stock

US DIRECT PURCHASING

Buying Direct in the US

Online checkout is available to US end users only.

Free US shipping included
2-year warranty
Secure checkout
Klarna, Affirm and Cash App Afterpay available at checkout
Amazon Pay accepted at checkout
Ships from Fort Wayne, Indiana

Outside the US? Purchase through an authorized Fluid Professional dealer.

Find a dealer

Low-Frequency Reference Monitoring Built for Translation

Image 212S is a sealed, dual-opposed 12-inch studio subwoofer for engineers who need deeper low-frequency extension without giving up transient control, clarity, or confidence in the mix.

Dual active 12-inch drivers, 1000 watts RMS of amplification, adjustable crossover and phase control, and Fluid Professional Vi-bracer technology make the 212S a serious low-frequency foundation for stereo, Dolby Atmos, Sony 360, post-production, and immersive monitoring systems.

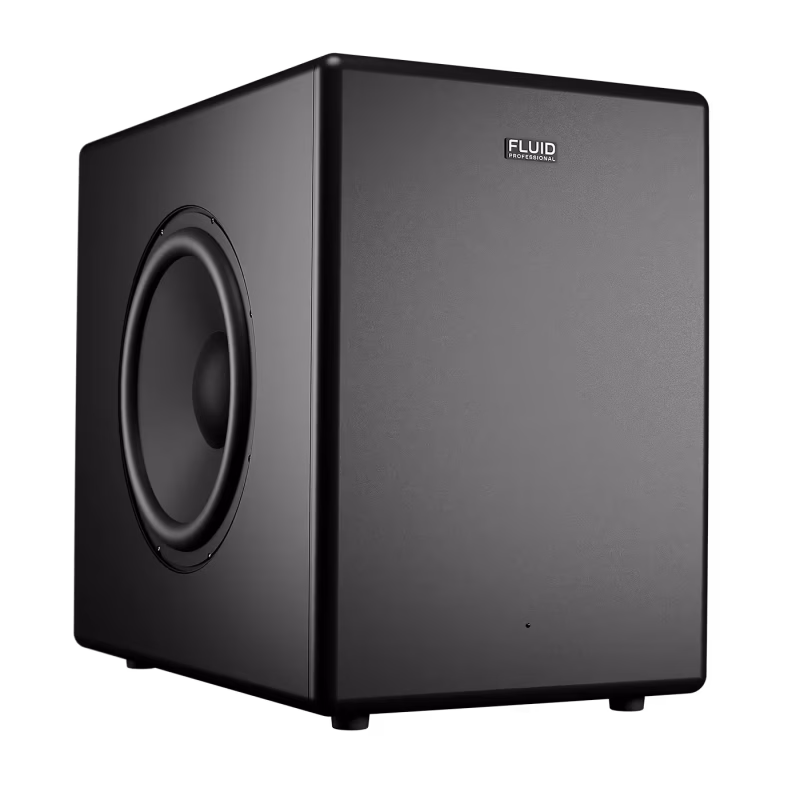

Fluid Professional Image 212S studio subwoofer

2 × 12" Dual-opposed woofers

Force-cancelling driver geometry helps reduce cabinet reaction forces and unwanted vibration while maintaining high output.

1000 W RMS amplifier power

Dual 500-watt RMS amplifier channels provide the reserve needed for demanding low-frequency transients and LFE playback.

29 Hz Low-frequency extension

Sealed alignment reaches 29 Hz at -3 dB with controlled roll-off designed for accurate professional monitoring.

120 dB Maximum SPL

High output capability provides useful headroom for reference monitoring, immersive production, and LFE work.

Controlled Low Frequency

Deep Bass Is Useful Only When You Can Trust It

A reference subwoofer should reveal low-frequency balance, pitch, decay, transient behavior, and LFE content clearly enough to make decisions that translate beyond the studio. The goal is not simply more bass. It is more reliable information.

Sealed Cabinet Control

The sealed enclosure avoids port noise and excessive overhang, helping low-frequency transients start and stop cleanly while making room integration more predictable.

Vi-bracer Technology

The opposing woofer motors are mechanically coupled through a rigid internal structure that helps suppress cabinet movement at the source for tighter, more stable low-frequency playback.

Flexible System Integration

Variable crossover from 40 to 200 Hz, continuously adjustable phase from 0 to 180 degrees, gain control, analog LFE, and AES/EBU connectivity make the 212S adaptable to a wide range of professional monitoring systems.

Built for Critical Monitoring

The 212S is designed as a low-frequency extension rather than an effect. Properly integrated, it extends the usable system bandwidth while preserving the character and imaging of the main monitors.

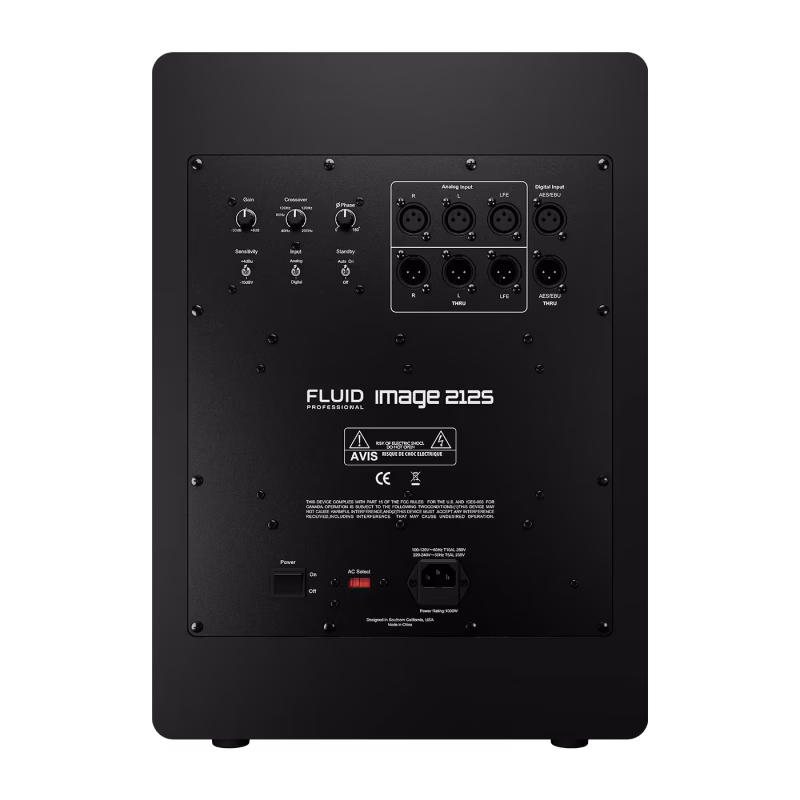

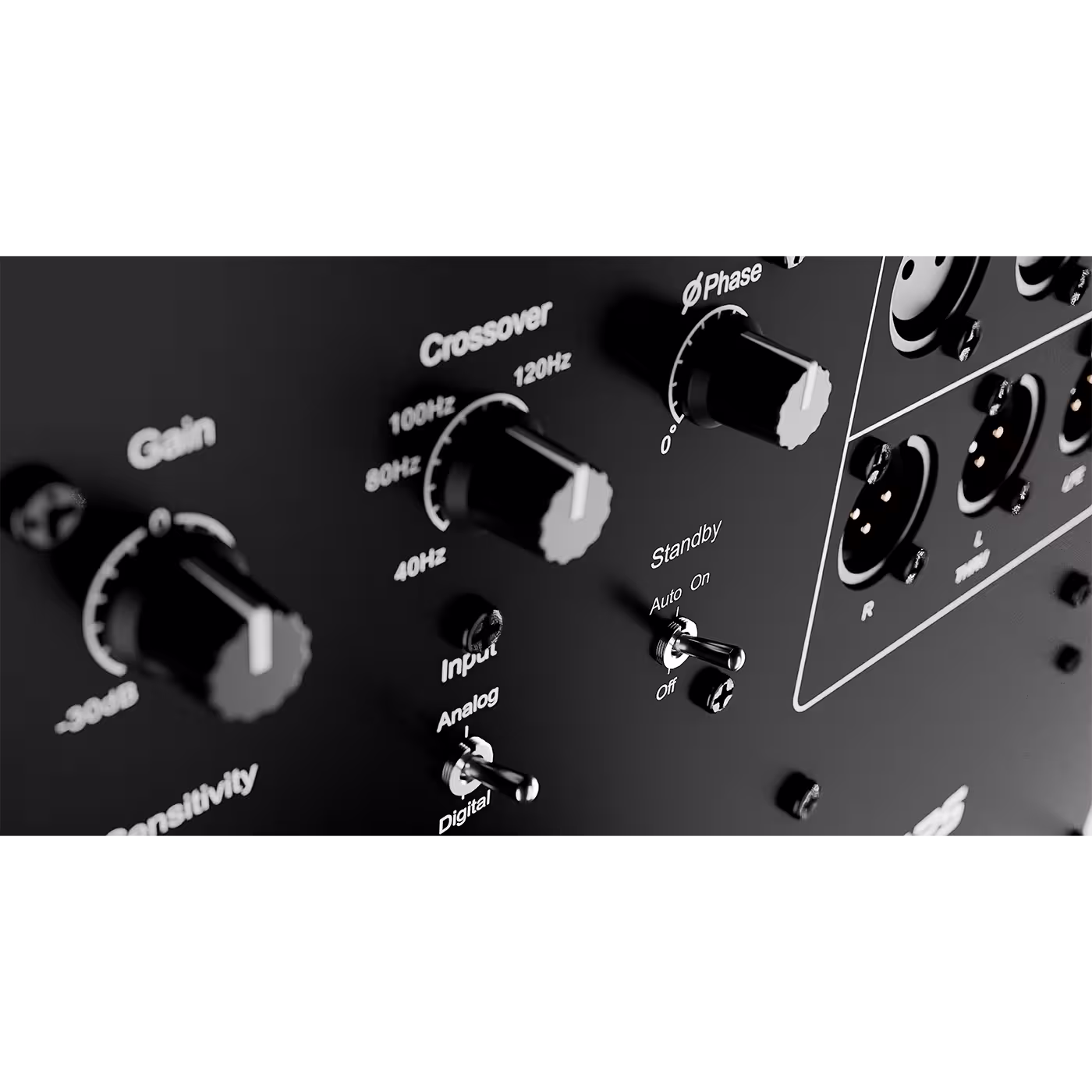

Fluid Professional Image 212S amplifier panel with crossover, phase, sensitivity, and professional audio connections

Low-Frequency Extension

Built for Image Series. Ready for Other Professional Monitor Systems.

Image 212S is the natural low-frequency extension for the Fluid Professional Image Series, but its adjustable crossover, phase, sensitivity, and professional analog and digital connectivity also make it suitable for integrating with other high-quality studio monitor systems.

Learn more about Fluid Professional reference monitoring Shop the complete Fluid Professional Image Series

Compact Reference System

Image 1 + Image 212S

Extend Image 1 into the lowest octave for larger rooms, higher SPL requirements, bass-critical work, and immersive systems while retaining the compact monitor's precise imaging and midrange focus.

Explore Image 1

Full-Range Reference System

Image 2 + Image 212S

Add dedicated sub-bass and LFE headroom to Image 2 for demanding stereo, mastering, post-production, and immersive applications where additional extension below the main monitors is required.

Explore Image 2

Other Professional Monitors

Extend the Lows Without Replacing Your Main Monitors

The 212S can also complement professional monitors from other manufacturers when the system needs greater low-frequency extension, dedicated LFE reproduction, or more headroom at the bottom of the spectrum.

Correct crossover, phase, level, and room calibration remain essential for accurate integration.

Immersive Monitoring

A Low-Frequency Foundation for Dolby Atmos and Immersive Rooms

In immersive production, the subwoofer has to do more than add weight. It must reproduce the LFE channel accurately, integrate predictably with multiple monitors, and provide enough headroom for music, post-production, and cinematic low-frequency material.

Image 212S can anchor an all-Image Series immersive system using Image 1 and Image 2, or serve as the dedicated low-frequency component in a mixed professional monitoring installation.

Planning an immersive room? Read the Dolby Atmos guide

System Integration

Tune the Subwoofer to the Room and the Monitoring System

The 212S provides the controls and connectivity needed to integrate with compact nearfields, larger reference monitors, stereo systems, and dedicated immersive monitoring installations.

40–200 Hz Variable crossover control

0–180° Variable phase adjustment

-30 to +6 dB Gain control range

Analog + Digital XLR, LFE, and AES/EBU connectivity

Technical Specifications

Image 212S System Specifications

Dual 12-inch active drivers, sealed cabinet architecture, extensive system control, professional analog and digital connectivity, and high-output amplification for stereo and immersive monitoring.

Type

12-inch active sealed studio subwoofer

Woofers

2 × 12-inch reinforced paper-cone drivers
Low-distortion motor system
Threaded for Vi-bracer coupling
±9 mm linear excursion

Frequency Response

29 Hz – 110 Hz @ -3 dB (on axis)

Bass Response

-10 dB @ 26 Hz
Q = 0.707
Slope = 24 dB/octave

Amplifier Power

2 × 500 W RMS
2 × 1000 W peak

Maximum SPL

120 dB @ 1 meter
-15 dBV input signal with gain control set to +6 dB

Inputs

Stereo balanced XLR analog
LFE balanced XLR analog
AES/EBU XLR digital

Outputs

Stereo balanced XLR analog
LFE balanced XLR analog
AES/EBU XLR digital

Controls

Gain: -30 dB to +6 dB
Variable phase: 0° to 180°
Variable crossover: 40 Hz to 200 Hz
Sensitivity: +4 dBu or -10 dBV
Input selector: Analog / Digital
Standby: Auto / Off

Input Impedance

Balanced XLR, 20 kΩ

Protection

Power limiting
Thermal shutdown
Short-circuit / overload output protection
Subsonic filter

AC Power Input

100–120 VAC or 220–240 VAC
Voltage configuration set at factory

Power Consumption

Idle: 0.5 W
Maximum: 1500 W

Cabinet

Vinyl-laminated high acoustic-efficiency MDF

Weight

Net: 61.5 lbs (27.9 kg)
Shipping: 72.8 lbs (33.0 kg)

Shipping Dimensions

26.4 × 18.9 × 24.8 inches
671 × 481 × 630 mm

Product Dimensions

13.8 × 19.1 × 21.3 inches
350 × 485 × 540 mm
