Image 2 3 Way AMT Studio Monitor, Single, White | Fluid Professional

Name: Image 2 3 Way AMT Studio Monitor, Single, White | Fluid Professional
Brand: Fluid Professional
SKU: FP-IMAGE2W
Price: 1899.00 USD
Availability: OutOfStock

Active 3-Way Studio Reference Monitor WHITE

Quantity: Single Powered Monitor
LF Driver: Dual 8″ active
MF Driver: 5"
HF Driver: AMT
Wattage: 675 Watts

$1,899

Flexible payment options Pay over time with Klarna or Affirm. Amazon Pay also available at checkout.

Out of stock

Find a dealer

US DIRECT PURCHASING

Buying Direct in the US

Online checkout is available to US end users only.

Free US shipping included
2-year warranty
Secure checkout
Klarna and Affirm available at checkout
Amazon Pay accepted at checkout
Ships from Fort Wayne, Indiana

Outside the US? Purchase through an authorized Fluid Audio dealer.

Find a dealer

Full-Range 3-Way Reference Monitoring for Larger Rooms

Image 2 is built for engineers, producers, mastering rooms, and immersive systems that need higher output, deeper low-frequency authority, dedicated midrange precision, and reliable translation across professional playback environments.

A true 3-way architecture combines dual-opposed 8-inch woofers, a dedicated 5-inch aluminum midrange, AMT high-frequency driver, onboard DSP, SoundID Reference profile support, and a sealed low-frequency system in one reference monitor.

Dedicated midrange Improves vocal placement, instrument separation, snare definition, and mix balance.

AMT high-frequency detail Fast transient response and extended detail without relying on aggressive voicing.

Dual-opposed low end Two active 8-inch woofers provide controlled extension and greater low-frequency authority.

DSP and calibration ready Store SoundID Reference calibration profiles directly in the monitor system.

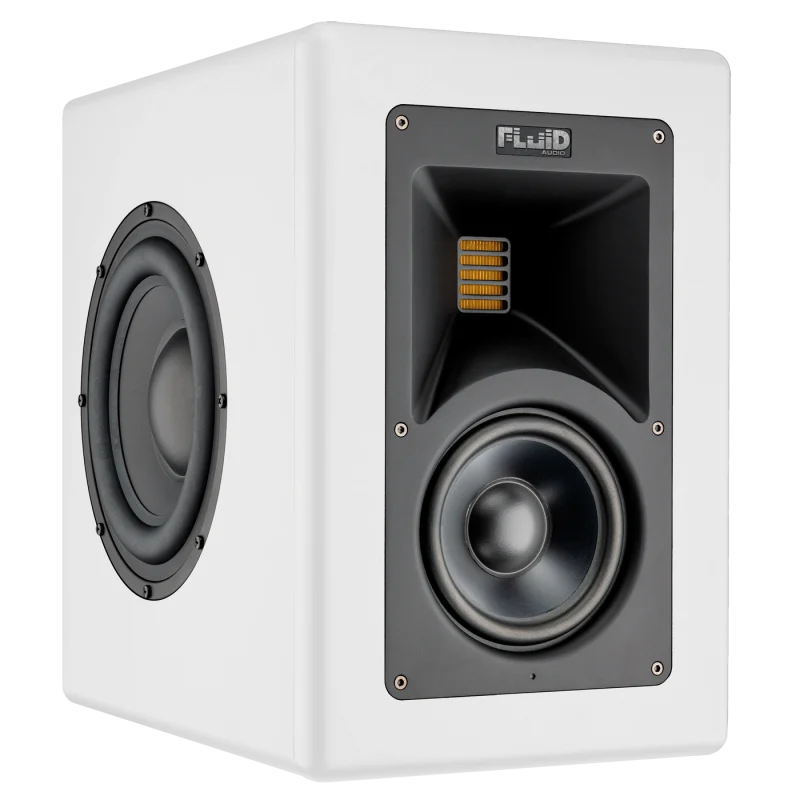

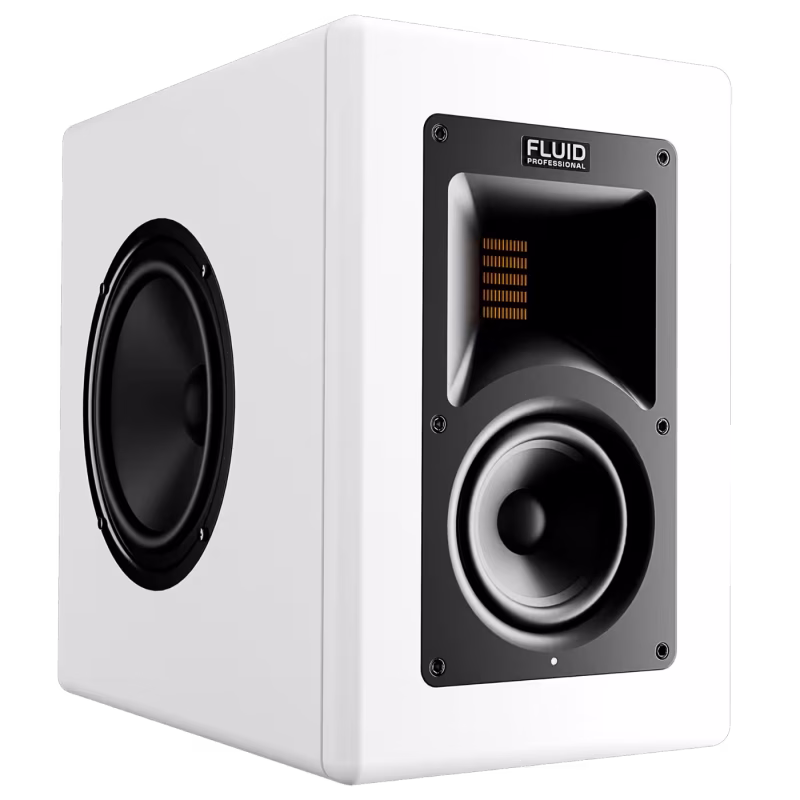

Fluid Professional Image 2 White three-way reference studio monitor

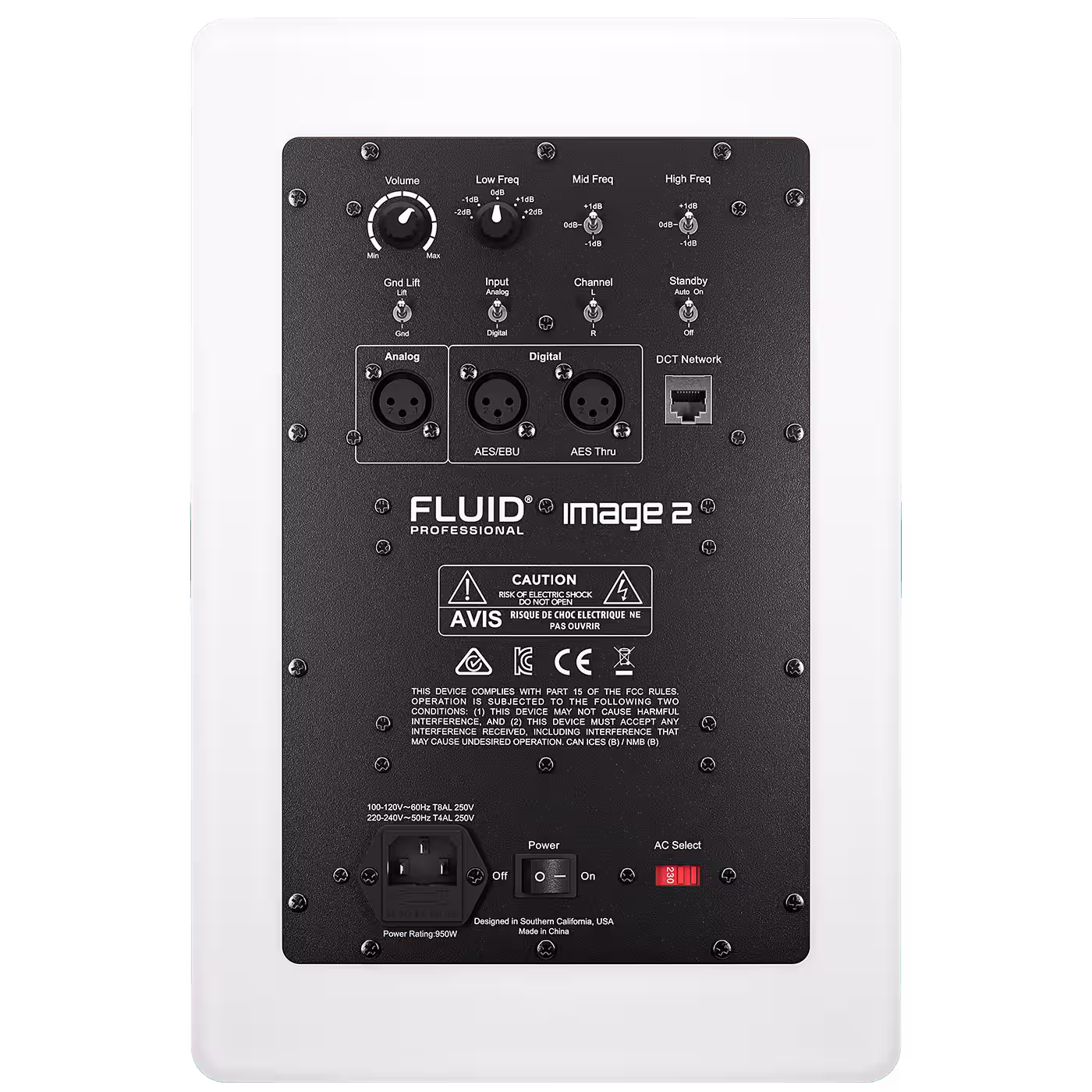

Fluid Professional Image 2 White rear panel showing analog XLR, AES digital connections, network control, and DSP controls

DSP Control and Calibration

Modern Monitoring Workflow with Integrated DSP

Image 2 combines onboard DSP processing, analog XLR input, professional AES digital connectivity, rear-panel acoustic controls, and SoundID Reference integration into a single professional monitoring platform.

Calibration profiles are uploaded through the monitor's RJ45 network connection using DCT software, allowing room-correction profiles to live directly inside the monitoring system rather than depending on a permanently active software plug-in.

SoundID Reference Ready

Store up to four calibration profiles directly in the monitor and switch between calibrated listening setups.

RJ45 Network Control

Network connectivity provides the DCT communication path for monitor setup and uploading calibration profiles.

AES Input + Thru

Connect to professional digital monitoring systems using AES input and continue the digital signal chain through AES thru.

Rear Panel EQ

High, mid, and low-frequency controls provide fast adjustment for room placement and boundary interaction.

3-Way Driver Architecture

Dedicated Midrange Precision and Controlled Low-Frequency Performance

Image 2 separates bass, midrange, and high-frequency reproduction across dedicated drivers so each part of the spectrum can operate over a more focused range.

5-Inch Aluminum Midrange

The dedicated midrange handles the critical vocal and instrument region without forcing the woofer or tweeter to cover an unnecessarily wide bandwidth.

AMT High-Frequency Driver

The Air Motion Transformer provides fast transient response, high-frequency detail, and extended reproduction for critical mix decisions.

Dual-Opposed 8-Inch Woofers

Two active low-frequency drivers provide greater displacement and output while the opposed geometry reduces cabinet reaction forces.

Vi-Bracer + Sealed Cabinet

The mechanically coupled woofer system and sealed alignment help control enclosure movement, decay behavior, and low-frequency transient response.

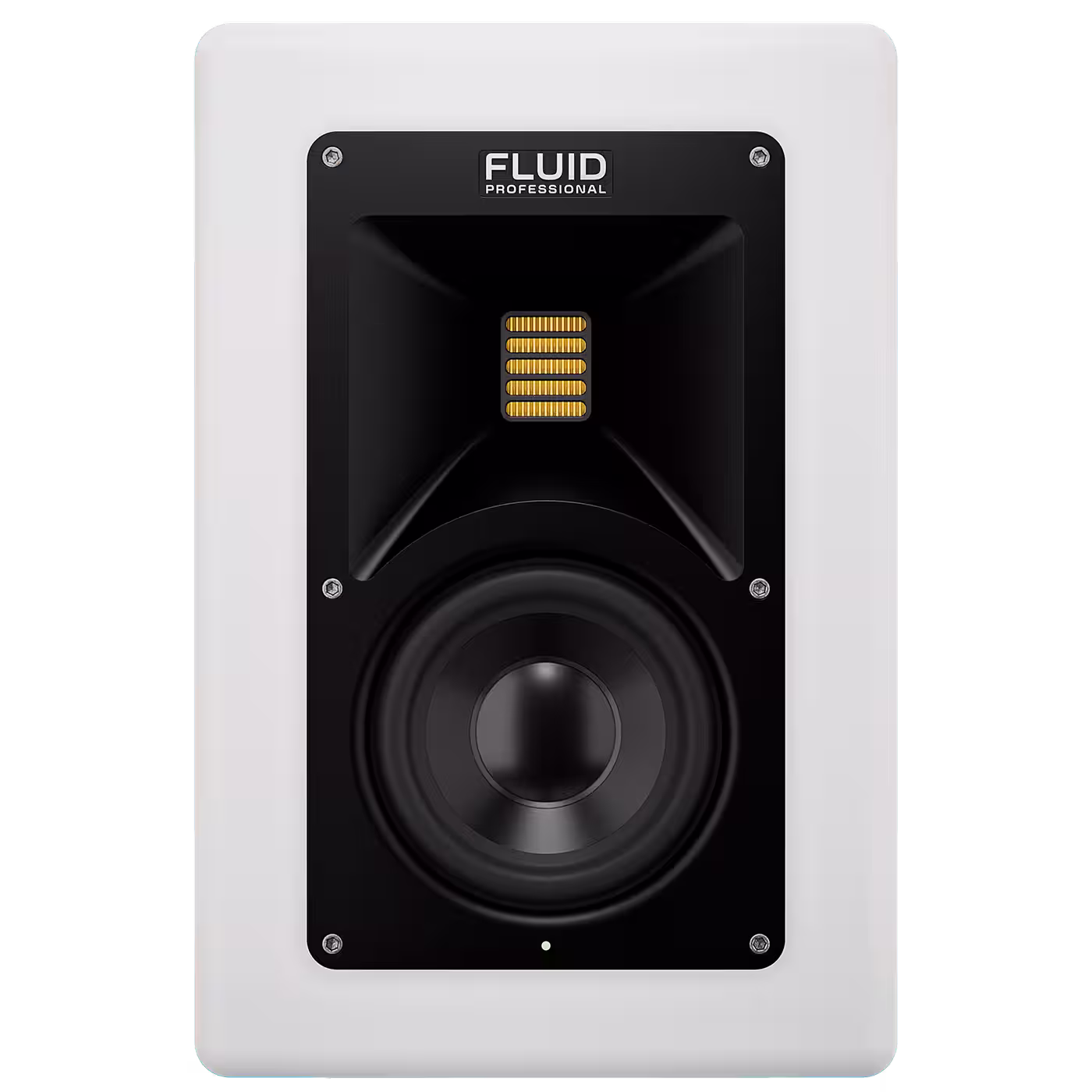

Fluid Professional Image 2 AMT waveguide and three-way driver architecture

Measured Response

Reference Monitoring You Can See as Well as Hear

Image 2 is designed around controlled on-axis response, smooth crossover integration, and low-frequency extension that remains useful for critical mix decisions rather than simply sounding large.

40 Hz – 27 kHz ±2.2 dB published response

38.1 Hz -3 dB low-frequency point

154 Hz Bass-to-mid crossover

2.8 kHz Mid-to-AMT crossover

Fluid Professional Image 2 on-axis frequency response curve — Published Image 2 on-axis frequency response.

Immersive Monitoring

Built for Dolby Atmos, Larger Rooms, and Scalable Reference Systems

Image 2 is designed for modern immersive workflows including Dolby Atmos music mixing, post-production, multi-channel monitoring, and larger stereo systems where output, headroom, and translation confidence matter.

Learn more about Fluid Professional reference monitoring Shop the complete Fluid Professional Image Series

Higher Output for Larger Rooms

Image 2 is the Image Series choice when listening distance, room volume, or production level demands more output and low-frequency authority.

Image 1 for Compact Systems

For smaller rooms and shorter listening distances, Image 1 brings the same three-way monitoring philosophy into a more compact enclosure.

212S Low-Frequency Extension

Add the Image 212S when the system needs dedicated LFE reproduction, deeper extension, or additional low-frequency headroom.

Immersive Workflow Guidance

Read the Dolby Atmos music mixing guide for speaker layouts, monitoring choices, and system-planning guidance.

Independent Reviews

Hear What Producers and Reviewers Say About Image 2

Three independent perspectives on Image 2, its translation, frequency balance, imaging, and real-world studio performance.

At a Glance

The Image 2 Reference Monitoring Platform

675 W RMS Combined LF, MF, and HF amplifier power

112 dB Maximum SPL, single monitor

3-Way Dual 8-inch LF + 5-inch MF + AMT HF

4 Profiles SoundID Reference calibration storage

Technical Specifications

Professional Monitoring Specifications and System Details

Image 2 combines high-output three-way monitoring, onboard DSP, dual-opposed low-frequency architecture, room-correction profile storage, and professional analog and AES connectivity.

Description

3-way active reference monitor with room-correction profile upload

Maximum SPL

112 dB, single monitor
115 dB, dual monitors

Frequency Response

±2.2 dB, 40 Hz – 27 kHz
-3 dB @ 38.1 Hz
-6 dB @ 35.2 Hz

Bass Response

-3 dB @ 40 Hz
Q = 0.707
24 dB/octave slope

Crossover Frequencies

Bass / Mid: 154 Hz
Mid / Treble: 2800 Hz
Controlled by onboard DSP

Sensitivity

90 dB @ 1 meter with -15 dBV input signal
Level control set to 0 dB

Input Impedance

Balanced XLR: 20 kΩ

Controls

Input-level stepped attenuator

Low-Frequency Drivers

2 × 8-inch paper-cone woofers
±8.2 mm linear excursion

Midrange Driver

5-inch aluminum cone
Low-distortion motor with shorting ring

High-Frequency Driver

AMT Air Motion Transformer
96 × 66 × 27 mm
Approx. 1.1 × 1.7-inch active aperture
114 × 28 mm unfolded radiation area

Amplifier Power

Low frequency: 225 W × 2 RMS
Mid frequency: 150 W RMS
High frequency: 75 W RMS
Total: 675 W RMS

Cabinet

21.7 liters total internal volume
Sealed woofer and midrange enclosures

Signal Processing

Onboard DSP
Room-correction profile upload
SoundID Reference profile support
Up to four stored calibration profiles
CubeMix mode via DCT software

Audio Connections

Analog balanced XLR input
AES digital input
AES digital thru

Network / Control

RJ45 network connection for DCT communication and profile upload

Rear Panel Acoustic Controls

High Frequency: -1 / 0 / +1
Mid Frequency: -1 / 0 / +1
Low Frequency: -2 / -1 / 0 / +1 / +2

Rear Panel Features

Digital / Analog selector
Digital input channel select L/R
Auto standby On / Off
Ground lift

AC Power Input

100–120 VAC or 220–240 VAC
Voltage configuration set at factory

Power Consumption

Idle: 3 W
Maximum: 950 W

Weight

Net: 28.4 lbs each / 12.8 kg
Shipping: 31.5 lbs each / 15.5 kg

Shipping Dimensions

18.9 × 14.6 × 20.4 inches
480 × 372 × 518 mm

Product Dimensions

9.5 × 14.3 × 13.8 inches
242 × 363 × 350 mm

Color Options

Black
White

SKU: FP-IMAGE2W Category: Professional Studio Monitors Tags: Fluid Professional Image 2, Pro Audio
