FC10S 10 Inch Studio Subwoofer with Footswitch Bypass | Fluid Audio

Name: FC10S 10 Inch Studio Subwoofer with Footswitch Bypass | Fluid Audio
Brand: Fluid Audio
SKU: FA-FC10S
Price: 379.00 USD
Availability: InStock

Active 10” Studio Subwoofer

Quantity: Single Powered Subwoofer
LF Driver: 10"
Wattage: 200 Watts

$379

Flexible payment options Pay over time with Klarna or Affirm. Amazon Pay also available at checkout.

In stock

Find a dealer

US DIRECT PURCHASING

Buying Direct in the US

Online checkout is available to US end users only.

Free US shipping included
2-year warranty
Secure checkout
Klarna and Affirm available at checkout
Amazon Pay accepted at checkout
Ships from Fort Wayne, Indiana

Outside the US? Purchase through an authorized Fluid Audio dealer.

Find a dealer

Hear the Low End Your Main Monitors Cannot Reach

FC10S is a 10 inch active studio subwoofer designed for mid-to-large rooms where accurate bass extension matters. Its 200 watt Class D amplifier, flexible crossover controls and included bypass footswitch make it equally useful for mixing, production, gaming and home theater playback.

Building a complete monitoring system? Explore Fluid Audio studio monitors to compare options for your room and workflow.

10" active subwoofer 200 watt Class D amplifier 20 Hz to 200 Hz response Included bypass footswitch

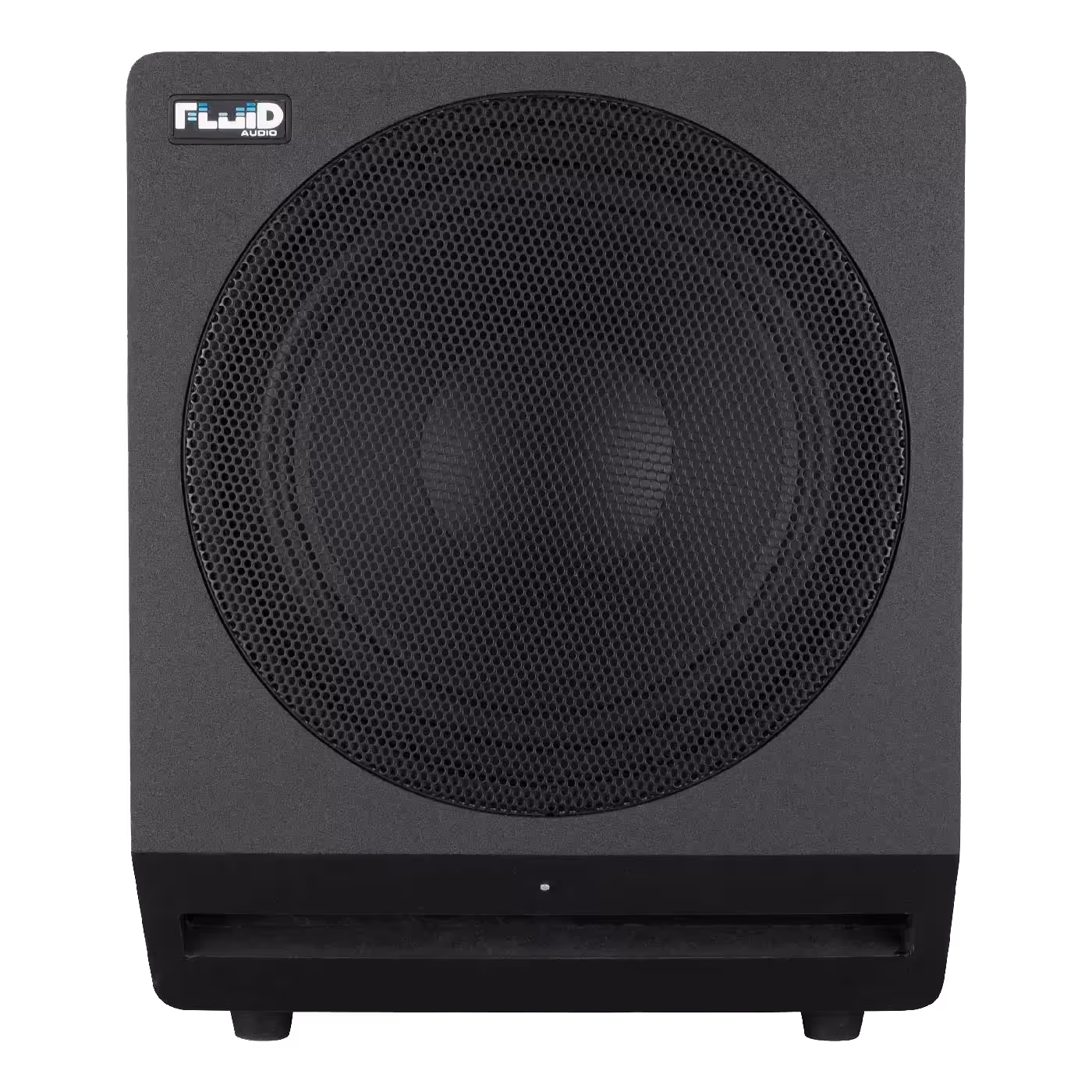

Fluid Audio FC10S 10 inch active studio subwoofer front view

Low-end extension

Bass You Can Hear, Feel and Make Decisions With

Low-frequency information often extends below what compact nearfield monitors can reproduce cleanly. Adding a properly integrated subwoofer lets you hear more of the mix and check how bass-heavy material behaves before it leaves your studio.

Extend monitoring to 20 Hz

FC10S reaches down to 20 Hz, providing access to sub-bass content that many studio monitors cannot reproduce on their own.

Check translation with and without the sub

The included footswitch lets you bypass the FC10S quickly so you can compare the mix with bass extension and without it.

Tune the sub to your main monitors

Variable phase and low-pass controls help integrate the FC10S with the frequency range and placement of your left and right monitors.

Mix-check workflow

Turn the Sub On and Off Without Leaving the Listening Position

The included footswitch is not just a convenience feature. It makes A/B checking part of the mixing workflow by letting you hear how the low end behaves both with the FC10S active and with the subwoofer bypassed.

Subwoofer engaged Hear the full low-frequency extension of the monitoring system and evaluate deep bass, sub content and low-end balance.

Subwoofer bypassed Check how the mix translates without extended bass reproduction and confirm that important information still works on smaller playback systems.

80 Hz satellite high-pass When the bypass footswitch is used with the satellite connections, the FC10S provides an 80 Hz high-pass filter for the connected monitors.

System integration

Controls for Matching the FC10S to Your Room and Monitors

The rear panel gives you the controls needed to integrate the subwoofer into a studio monitoring system rather than treating it as a fixed-output bass box.

Variable low-pass filter 50 Hz to 200 Hz crossover adjustment.

Variable phase 0 to 180 degrees for alignment with the main monitors.

Input gain Match FC10S output level to your monitoring system.

Ground lift Helps address ground hum in some installations.

Flat / Punch setting Select between conventional flat response and a more mid-bass-forward Punch mode.

Front-firing bass reflex port Front baffle porting helps make placement more flexible.

Fluid Audio FC10S rear panel showing audio connections and subwoofer controls

Two voicing options

Flat for Reference. Punch for More Mid-Bass Impact.

FC10S includes two built-in EQ choices so the subwoofer can be used either as a conventional monitoring extension or with a more energetic mid-bass presentation.

Flat

Use the conventional flat setting when the priority is balanced low-frequency extension and monitoring consistency.

Punch

Use the Punch setting when you want a more mid-bass-forward presentation for dance music and other material where impact is part of the listening experience.

Connection workflow

Integrate FC10S Between Your Source and Main Monitors

FC10S provides balanced and unbalanced connection options for common studio systems, along with outputs for feeding the left and right monitors.

Audio source Interface, monitor controller or other line-level source

FC10S inputs XLR, 1/4 inch or RCA

FC10S processing Gain, low-pass, phase and EQ mode

Main monitors Balanced XLR or 1/4 inch outputs

Technical specifications

Fluid Audio FC10S Specifications

Driver, amplifier, frequency range, connectivity, controls and physical specifications for the FC10S active studio subwoofer.

Product type

Active 10 inch studio subwoofer

Quantity

Single powered subwoofer

Woofer

10 inch composite paper cone with high-temperature voice coil and damped rubber surround

Amplifier type

Class D

Continuous power output

200 watts

Frequency response

20 Hz to 200 Hz

Maximum SPL

107 dB Flat / 108 dB Punch setting

Inputs

Balanced XLR, balanced/unbalanced 1/4 inch and RCA

Outputs

Balanced XLR and balanced/unbalanced 1/4 inch

Low-pass filter

Variable 50 Hz to 200 Hz

Phase control

Variable 0 to 180 degrees

Satellite high-pass filter

80 Hz when used with footswitch

EQ modes

Flat and Punch

Other rear-panel controls

Input gain and ground lift

Bypass

Subwoofer bypass pedal input; footswitch included

Power saving

Amplifier standby function

Cabinet

Vinyl-laminated MDF

Dimensions

15.25 × 12.5 × 15.5 in / 387 × 317 × 394 mm

Weight

28.2 lb / 12.8 kg

FC10S FAQ

Common FC10S Questions

Quick answers about crossover settings, bypass workflow, room integration and connectivity.

How low does the Fluid Audio FC10S play?

The specified frequency response is 20 Hz to 200 Hz.

What does the included FC10S footswitch do?

The included footswitch allows you to bypass the subwoofer from the listening position so you can audition the monitoring system with bass extension and without it.

Can I adjust the crossover frequency?

Yes. The FC10S provides a variable low-pass filter from 50 Hz to 200 Hz.

Does the FC10S have phase adjustment?

Yes. Variable phase control from 0 to 180 degrees is provided for matching the subwoofer to your main monitors and placement.

What connections does the FC10S support?

Inputs include balanced XLR, balanced/unbalanced 1/4 inch and RCA. Outputs include balanced XLR and balanced/unbalanced 1/4 inch connections for the main monitors.

What is the difference between Flat and Punch mode?

Flat provides the more conventional response, while Punch is intended to provide more mid-bass emphasis for music where additional impact is desirable.

Add the Low End Your Monitoring System Is Missing

Extend your monitoring down to 20 Hz, integrate the crossover and phase with your main monitors, and check mixes with or without the sub using the included footswitch.

Buy FC10S in the US Find a dealer Read the low-end mixing guide

SKU: FA-FC10S Category: Subwoofers (F8S, FC10S) Tag: Fluid Audio FC10s
