Fluid Audio SRI-2

SRI-2

2x2 USB AUDIO INTERFACE

SRI-2

USB AUDIO INTERFACE

SRI-2

SRI-2 USB Audio Interface featuring a robust aluminium chassis, the interface is a sturdy piece of gear reminiscent of the “old school” studios. Along with the striking design comes exceptional 21st-century audio quality and functionality. Best-in-class digital converters capture the detailed nuance of every recording. The large volume knob provides accurate control of the output level, and direct monitoring provides zero-latency tracking. The 2 XLR/TRS combo inputs are conveniently mounted on the front of the SRI-2, so you can easily plug in your instrument or mic. The truly unique innovation of the SRI-2, however, is the speaker switching capability, which allows you to A-B your mix on two sets of speakers (with one of them hopefully being from Fluid Audio).

Price : €219 / £179

$199.00

High-Resolution Desktop Music Production
With outstanding dynamic range and low noise, the SRI-2 provides pristine 24-bit/192 kHz audio quality and clarity. It’s premium mic preamps and transparent conversion translate into recordings with depth and richness. With both Combo inputs mounted on the front panel, you know exactly what is plugged in - no need to fumble with inputs on the rear panel. The convenient angled design allows you to easily reach all knobs and buttons, and LED indicators let you know exactly what positon they’re in - even in dimly lit studios.

A Portable Studio Complete with Cubase DAW Software
Compact and USB powered means portable. The USB 2.0 connection provides ample power to drive headphones for tracking or mixing, while at home or on the road. An external power input (Micro USB) must be used when connecting to your iPad, using the included Cubasis software. Whether you are recording an instrument, such as guitar, or using a microphone requiring 48V phantom power, all buttons and knobs are easy to access. The SRI-2, coupled with the included Cubase LE software, is a powerful and intuitive music production system. And though it comes with Cubase LE, the SRI-2 is compatible will all major DAWs, including Pro Tools, Studio One, and Ableton Live.

Solid Construction
The robust aluminum housing is not only attractive, but sturdy. It is at home in the studio as well as on the road. The volume knob is made of solid aluminum, which gives it the weight and the feel of vintage studio gear.

Key Features:

24-bit/192 kHz 2 x 2 USB 2.0 audio interface
2 Class-A mic preamps supporting +48 V phantom power
2 XLR/TRS inputs for Line/Mic/Instrument recording
4 TRS outputs, for AB switching between two pair of monitors
1 High-power headphone output with independent level control
USB-powered for mobile recording using either PC or Mac.
USB micro external power when used with iPad
Includes Cubase LE DAW software download version for PC and Mac
Includes Cubasis LE music for iOS

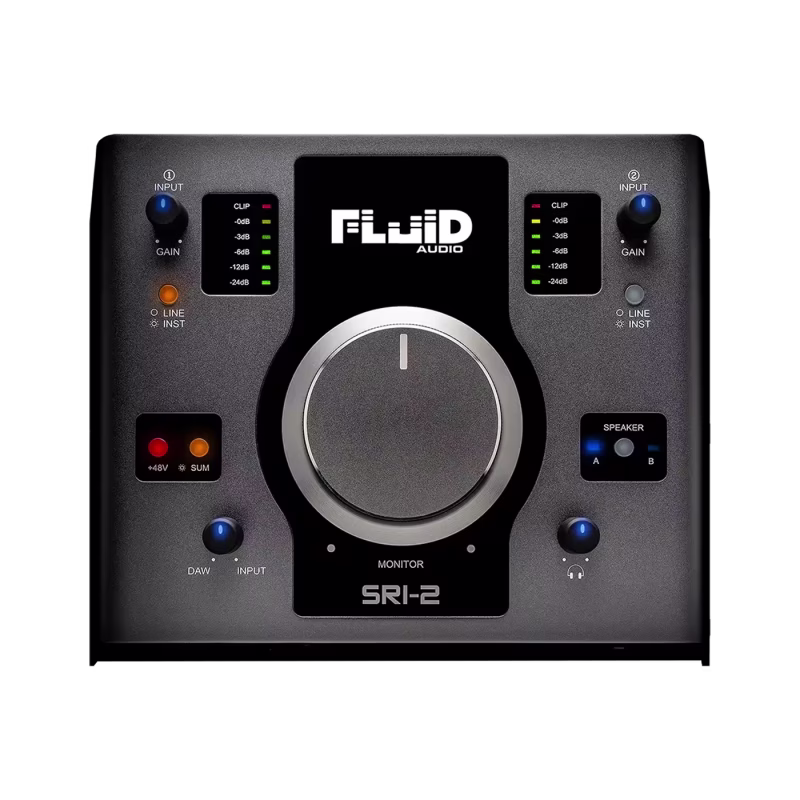

Controls Overview
Above all else, the SRI-2 is a premium 2x2 USB 2.0 audio interface with outstanding 24-bit/192 kHz audio conversion. The SRI-2 connects to the outputs and inputs of other audio gear, and performs analog-to-digital (A/D) and digital-to-analog (D/A) audio conversions on the gear’s signals. The digital audio signals are routed into and out of the host computer via the high speed USB 2.0 protocol, which is carried on the single USB cable included with the SRI-2.

Speaker AB Switching Button:

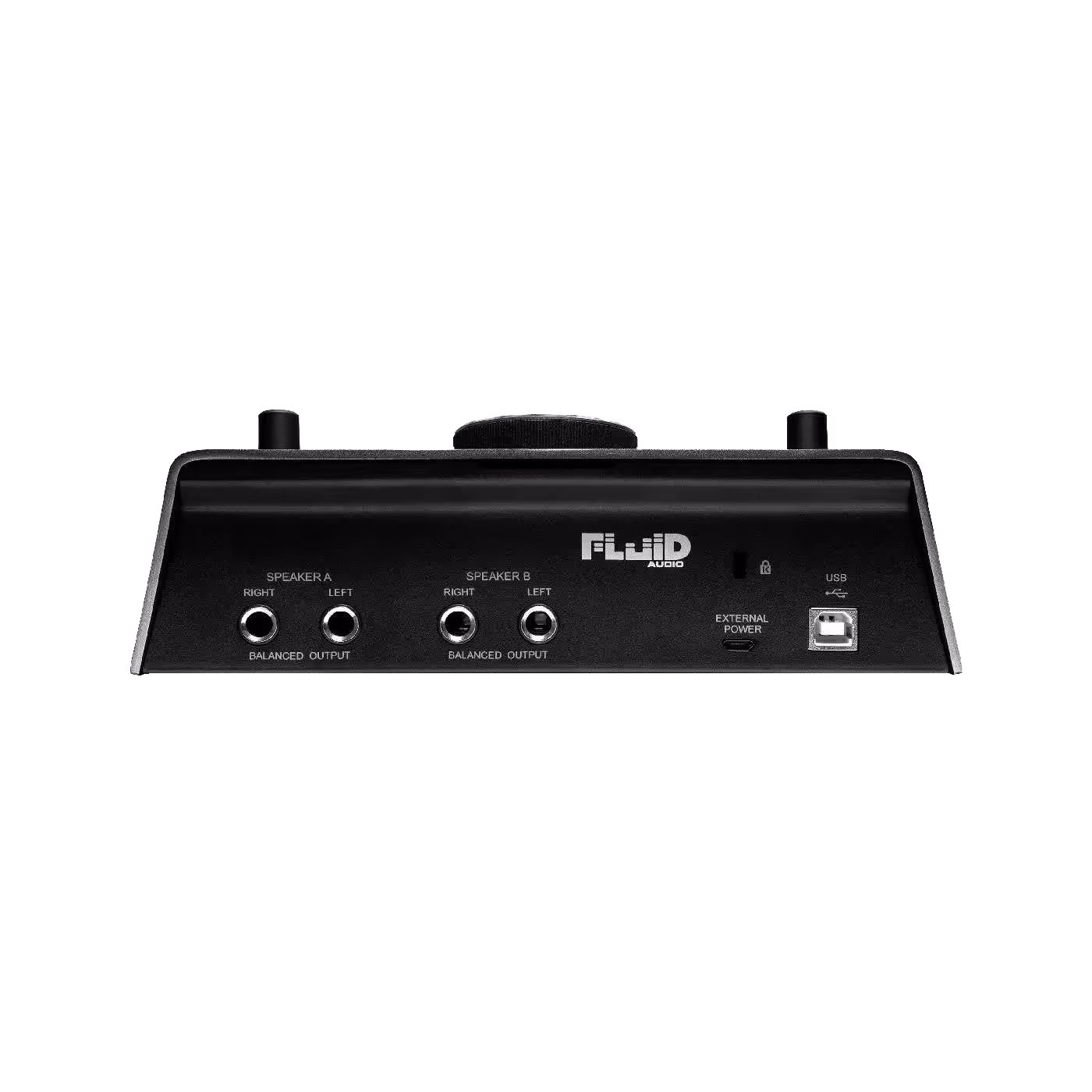

The SRI-2 actually has 4 outputs (2 sets for 2 pair of speakers). (Most interfaces have only one pair of outputs). This allows you to switch the routing of your audio to either pair. This helps you evaluate your mix as you can compare on speakers of different size, configuration, etc.

SUM Button:
In it’s normal state, the SRI-2 will route input 1 to the left monitor output, and input 2 to the right monitor output. When the SUM button is engaged, however, it will combine both input signals to the main channel outputs, centering the input channels and creating a mono out to your monitors.

(This is handy for a live performance setup where, for instance, a microphone is in input 1 and guitar is in input 2).

NOTE: The SUM function will not sum the inputs that come out of the USB connection – only through the main monitor outputs on the back of the SRI-2 hardware.

Additional information

MIC INPUT 1/2 (Balanced)

Maximum Input Level: +7 dBu
Input Impedance: 100 Ohm
GAIN Range: +6 dB – +46 dB
Frequency Response: +0.1 dB, 20 Hz to 20 kHz
Dynamic Range: 104 dB, A-weighted
THD+N: 0.0016%, 1 kHz, -1 dBFS, 20 Hz/20 kHz BPF
Noise EIN: <‐120dBu (A‐Weighted)
Polarity: Pin 1: Ground, Pin 2: Hot (+), Pin 3: Cold (‐)

HI-Z INPUT 1(Balanced)

Maximum Input Level: +4 dBu
Input Impedance: 1M Ohm
Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
GAIN Range: ‐+12 dB– 52 dB
THD+N: 0.0031%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
Dynamic Range: 104 dB, A‐weighted

LINE INPUT 1/2 (Balanced)

Maximum Input Level: +25 dBu
Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
Input Impedance: 20k Ohm
GAIN Selection: -11dB – +29 dB
THD+N: 0.005%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
Dynamic Range: 104 dB, A‐weighted

MAIN OUTPUT L/R (Banlanced)

Maximum Output Level: +6 dBFS
Output Impedance: 75 Ohm
Frequency response: +0.1/‐0.1 dB, 20 Hz to 20 kHz
Dynamic range: 102 dB, A‐weighted
THD+N: 0.0014%, 1 kHz, 0 dBFS, 20 Hz/20 kHz BPF

Headphones output

Maximum Output Level: 75 mW +75 mW, @ 32 Ohm
Dynamic range: 100 dB, A‐weighted
THD+N: 0.006%, 1 kHz, ‐1 dBFS, 20 Hz/20 kHz BPF
Impedance: <10 Ohm
Maximum Output Level dBu: +12dBu

USB Connection

USB 2.0,
24‐bit : 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz

Package Contents

SRI-2 Audio Interface
USB Cable
SRI-2 User Guide
Cubase LE/Cubasis Code Card
Cubase LE/Cubasis Quick Start Guide
